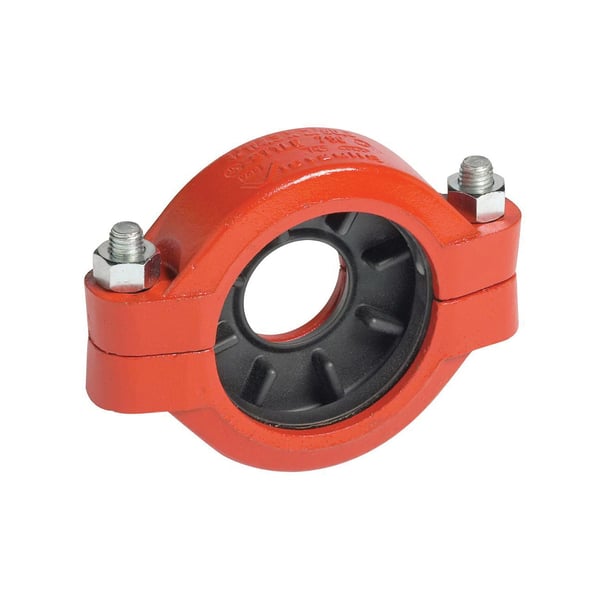

Victaulic® LE90750PE0 750 Reducing Coupling, 6 x 5 in Nominal, Grooved End Style, Ductile Iron, Orange Enamel


Description

Victaulic® Reducing Coupling, Series: 750, Reducing Coupling Fitting/Connector, 6 x 5 in Nominal, Grooved End Style, 2-1/4 in Thickness, 350 psi Pressure, Ductile Iron, Orange Enamel, 11.9 in W Dimensions

The Style 750 Reducing Coupling permits direct reduction on the piping run. Designed to replace two couplings and a reducing fitting, the Style 750 features a special reducing gasket for pressure responsive sealing. A steel washer which prevents telescoping of the smaller pipe inside the larger pipe during vertical systems assembly is available upon request.

Specifications

Dimensions 11.9 in W
End Style Grooved
Finish Orange Enamel
Fitting/Connector Type Reducing Coupling
Material Ductile Iron
Nominal Size 6 x 5 in
Pressure Rating 350 psi
Series 750
Thickness 2-1/4 in

Standards and Approvals: Ductile Iron Conforming to ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, VdS Approved, LPCB 104-1a/05, CTP

Features

  • Replaces two couplings and a reducing fitting
  • Grade "E" EPDM gasket
  • With heat-treated plated carbon steel bolts/nuts, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
  • 350 psi working pressure
