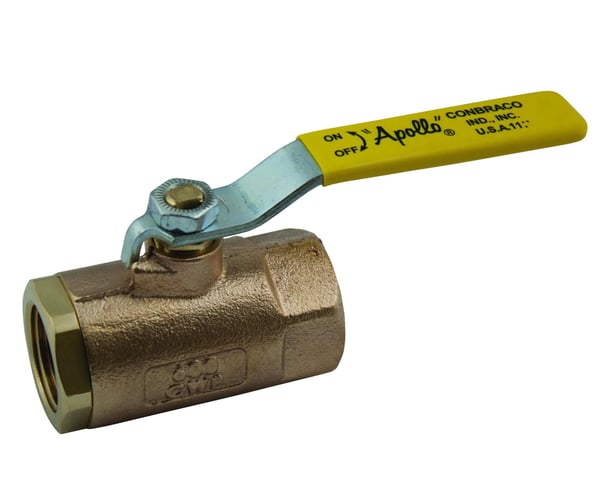

Apollo™ 7014101 70-140 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic


Description

Apollo™, 7014101, Ball Valve, 2-Piece, Series: 70-140, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem/RPTFE Seat Trim, MPTFE Softgoods, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Specifications

Actuator Type Lever Operated
Ball Material 316 Stainless Steel
Body Material Bronze
Domestic/Import Domestic
End Style FNPT
Inlet to Outlet Length 2.06 in
Media Water
Nominal Size 1/4 in
Port Type Standard
Pressure Rating 600 psi CWP
Series 70-140
Softgoods Material MPTFE
Temperature Rating 500 deg F
Top to Inlet Center 1-3/4 in
Trim Material 316 Stainless Steel Stem/RPTFE Seat
Type 2-Piece

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ASTM B16 Ball, MSS SP-110, CSA B51 CRN OC10908.5C, PROP65: Cancer and Reproductive Harm

Features

  • Premium materials and heavy duty construction
  • Adjustable stem packing gland
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • Steel, zinc plated lever nut
  • 150 psig saturated steam
