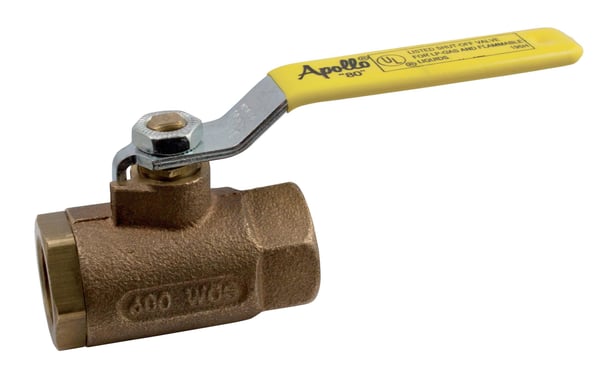

Apollo™ 8010301 80-100 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE Softgoods, Domestic


Description

Apollo™, 8010301, Ball Valve, 2-Piece, Series: 80-100, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Media: Gas/Water, 1/2 in Orifice, Lever Operated Actuator, 1.12 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 80 Series Bronze Ball Valve is UL Listed and designed as a safe shut-off valve for LP gas, natural gas, flammable liquids and heated oil.

Specifications

Actuator Type Lever Operated
Ball Material Chrome Plated Brass
Body Material Bronze
Domestic/Import Domestic
End Style FNPT
Inlet to Outlet Length 1.12 in
Media Gas/Water
Nominal Size 1/2 in
Orifice Size 1/2 in
Port Type Standard
Pressure Rating 600 psi CWP
Series 80-100
Softgoods Material RPTFE
Top to Inlet Center 1.81 in
Trim Material Brass Stem/RPTFE Seat
Type 2-Piece

Includes: Adjustable Packing Gland

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ASTM B584-C84400 Valve Body, cULus Listed, MSS SP-110, Federal Specifications WW-V-35C, Type II, Composition BZ, Style 3, CRN OC10908.5C, Guide YSDT: LP-Gas Shut-Off Valve, Guide YRPV: Gas Shut-Off Valve for Use With Natural and Manufactured Gases, Guide YRBX: Flammable liquid shutoff valve, Guide MHKZ: No. 6 oil at 250 deg F, PROP65: Cancer and Reproductive Harm

Features

  • Blow-out proof stem design
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • ASTM B16 (1/4 in to 1 in), B584-C84400 (1-1/4 in to 3 in) or B283, C37700 retainer
  • ASTM B16 gland nut
  • Zinc plated steel lever nut
  • 250 psi Lp gas/150 psi SWP seal
