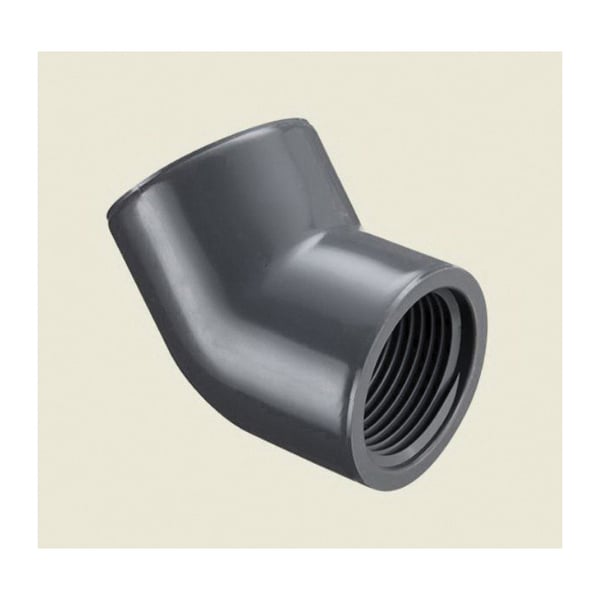

Spears® 819-020 Standard, 2 in nominal, FNPT end style, SCH 80, PVC, Domestic


Description

Spears® 819-020, Standard, 45 deg Elbow Fitting/Connector, 2 in Nominal, FNPT End Style, SCH 80 Schedule, 150 psi Pressure, Molded Method of Manufacture, PVC, Gray, 73 deg F, Domestic/Import: Domestic

All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.

Specifications

Color Gray
Domestic/Import Domestic
End Style FNPT
Fitting/Connector Type 45 deg Elbow
Material PVC
Method of Manufacture Molded
Nominal Size 2 in
Pressure Rating 150 psi
Schedule Rating SCH 80/XH
Temperature Rating 73 deg F
Type Standard

Country of Origin: United States

Standards and Approvals: ANSI B16.5, ASTM D1784, ASTM D1785, ASTM D2467, ASTM D2564, NSF Approved
