Spears® 855-015 2-Piece Van Stone Molded Flange With PVC Ring, 1-1/2 in, PVC, Thread, 150 lb, 5 in OD, Domestic
Spears® 855-015 2-Piece Van Stone Molded Flange With PVC Ring, 1-1/2 in, PVC, Thread, 150 lb, 5 in OD, Domestic
SKU: 10429
Manufacturer Part Number: 855-015
UPC: 054211165003
Brand: Spears®
Description

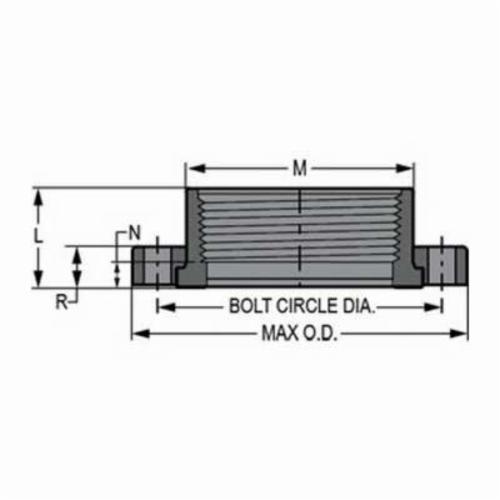

Spears® Flange, 2-Piece Van Stone Molded, 1-1/2 in Nominal, 5 in Outside Dia, 3-7/8 in Bolt Circle, Thread, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 1-15/32 in H, Domestic
Specifications
| Bolt Circle Diameter | 3-7/8 in |
| Color | Gray |
| Connection Type | Thread |
| Dimensions | 1-15/32 in H |
| Domestic/Import | Domestic |
| Material | PVC |
| Nominal Size | 1-1/2 in |
| Outside Diameter | 5 in |
| Pressure Class | 150 lb |
| Pressure Rating | 150 psi |
| Schedule Rating | SCH 40/STD/SCH 80/XH |
| Temperature Rating | 73 deg F |
| Type | 2-Piece Van Stone Molded |
Country of Origin: United States
