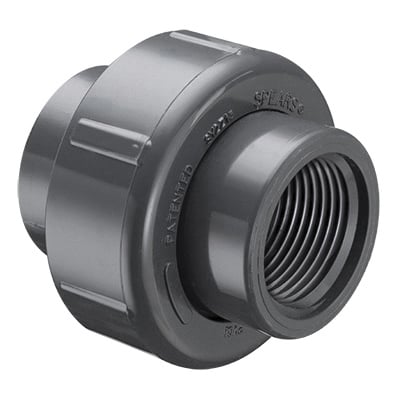

Spears® 897-020, 2 in nominal, Socket end style, SCH 80/XH, PVC, EPDM O-Ring seal, Domestic


Description

Spears® 897-020, Union Fitting/Connector, 2 in Nominal, Socket End Style, 3-5/8 in Length, SCH 80/XH Schedule, 235 psi Pressure, Molded Method of Manufacture, PVC, EPDM O-Ring Seal, Gray, 73 deg F, 4-3/16 in OD Dimensions, Domestic/Import: Domestic

All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.

Specifications

Color Gray
Dimensions 4-3/16 in OD
Domestic/Import Domestic
End Style Socket
Fitting/Connector Type Union
Length 3-5/8 in
Material PVC
Method of Manufacture Molded
Nominal Size 2 in
Pressure Rating 235 psi
Schedule Rating SCH 80/XH
Seal Material EPDM O-Ring
Temperature Rating 73 deg F

Country of Origin: United States
