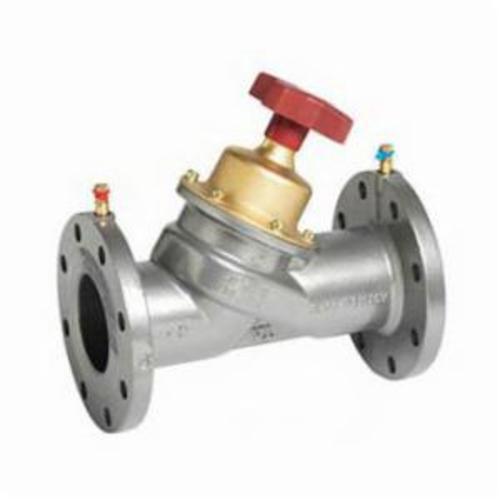

Victaulic® V030788CBV 788 Balancing Valve, 3 in Nominal, Flanged End Style, Test Port, 250 psi Pressure, 31 to 130 gpm Flow Rate, Ductile Iron Body


Description

Victaulic® Balancing Valve, Series: 788, 3 in Nominal, Flanged End Style, 250 psi Pressure, 150 lb Pressure Class, -4 to 250 deg F, 31 to 130 gpm Flow Rate, Test Port, Handwheel Actuator, Ductile Iron Body, Metal Trim, EPDM, Stem Seal Softgoods, 3-1/2 in OD x 12-1/4 in L Dimensions

Reliable, simple and cost effective, for precise flow measurement and balancing. Drain/Fill/Vent connection for zone or entire system. Can be installed in any position.

Specifications

Actuator Type Handwheel
Body Material Ductile Iron
Dimensions 3-1/2 in OD x 12-1/4 in L
End Style Flanged
Flow Rate 31 to 130 gpm
Nominal Size 3 in
Port Type Test
Pressure Class 150 lb
Pressure Rating 250 psi
Series 788
Softgoods Material EPDM, Stem Seal
Temperature Rating -4 to 250 deg F
Trim Material Metal

Standards and Approvals: ASTM A-536 Grade 60-40-12, ASME/ANSI B16.42

Features

  • Digital hand wheel with 8, 12 or 16 turns to open (depending on size)
