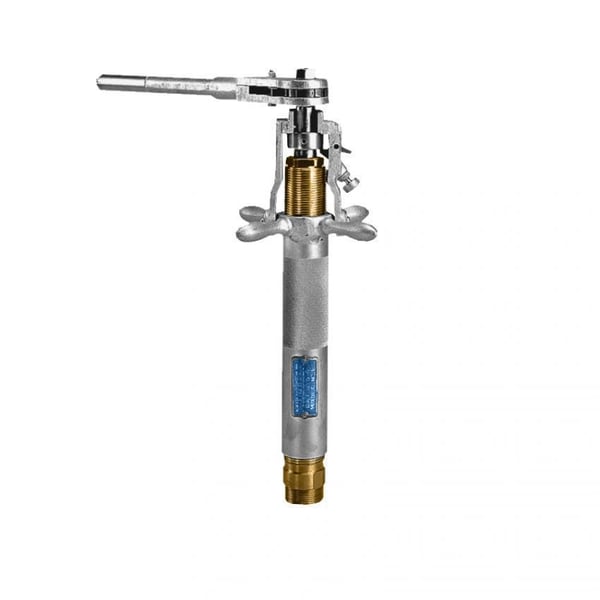

Mueller Co 39305 Drilling and Stopping Machine, 3/4 - 2 in Pipe

SKU: 12662

Manufacturer Part Number: 39305

Brand: Mueller Co

Description

Mueller Co, 39305, Drilling and Stopping Machine, 3/4 - 2 in Pipe, Fluorocarbon/Steel

Material	Fluorocarbon/Steel
Pipe Capacity	3/4 - 2 in

Warranty: Limited

H-604 air power operator
Used to install up to 4 in tees, Save-A-Valve® drilling nipples and line stopper fittings
Has boring bar locking mechanism for safe, positive operation
Test plug feature allows for stack pressurization
14 in (356 mm) boring bar travel
500 psig (3447 kPa) maximum working pressure at 100 deg F (38 deg C)
Note: The working pressure or temperature rating is reduced accordingly if any attachment, valve or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above
Equipment furnished with each D-5 machine: Metal Storage Chest (580969), Reversible Ratchet Handle (85308), Body Gasket (33278), Adjustable Wrench (91664), Double open end Wrench (58196), Cutting Grease (88366), Operating instruction Manual (Form 9335)
