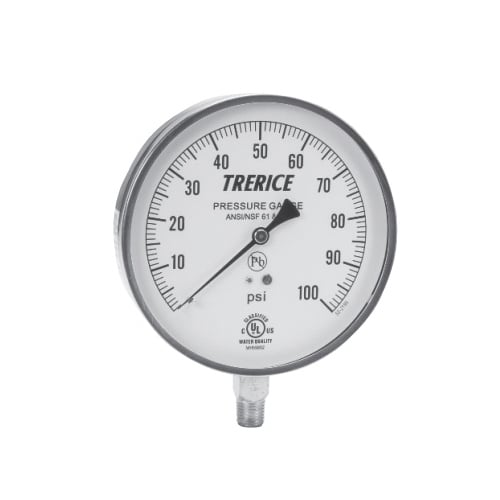

Trerice Trerice 620B4502LA100 620B Commercial Contractor Pressure Gauge, 0 to 100 psi Pressure, 1/4 in MNPT Connection, 4-1/2 in Dia Dial, +/- 1 % Accuracy


Description

Trerice Contractor Pressure Gauge, Commercial, Series: 620B, 0 to 100 psi, 1/4 in MNPT, 4-1/2 in Dial Diameter, +/- 1 % Accuracy, 212 deg F, Lower Mount, 304 Stainless Steel Case, 4.96 in Dia x 1.16 in D

The 620B Trerice Contractor Gauge is designed to service the general pressure measurement requirements of the construction industry. The 620B offers high reliability at an economic price. This gauge features a corrosion resistant, stainless steel case and acrylic window. Wetted parts are Lead-Free (PBF) brass.

Specifications

Accuracy +/- 1 %
Connection Size 1/4 in MNPT
Dial Diameter 4-1/2 in
Dimensions 4.96 in Dia x 1.16 in D
Material 304 Stainless Steel Case
Mounting Type Lower
Pressure Range 0 to 100 psi
Series 620B
Temperature Rating 212 deg F
Type Commercial

Includes: Recalibrator Screw

Standards and Approvals: ASME B40.100 Grade 1A, cULus Water Quality MH59892, NSF/ANSI 372/61

Application:
Construction and HVAC Industries

Features

  • Brass movement
  • Plain, black finished adjustable via screw on dial face pointer
  • Bronze tube, brass socket
  • Acrylic window
  • 304 stainless steel, stem mounted flangeless case
  • Aluminum/white background with black graduations and markings dial face
  • Friction type, 304 stainless steel ring
