Reed 03132 Hinged Cutter, 4 to 6 in


Description

Reed Hinged Cutter, 4 to 6 in Nominal Capacity, Tool Steel Blade, 28 in Overall Length, Applicable Materials: Cast Iron and Ductile Iron

Four wheels cut steel, stainless steel, cast and ductile iron with only 90 deg to 110 deg handle swing. Only 4 in (102 mm) clearance required around pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360 deg frame forces all energy into cutting the pipe for maximum efficiency and productivity. There is no shower of sparks in this cold cut. This is the only hinged cutter that tracks every time and the only one recommended for ductile iron, steel and stainless steel to Schedule 100. This tool is a Reed invention.

Specifications

Applicable Materials Cast Iron and Ductile Iron
Blade Material Tool Steel
Nominal Capacity 4 to 6 in
Overall Length 28 in

Warranty: Lifetime

Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Application:

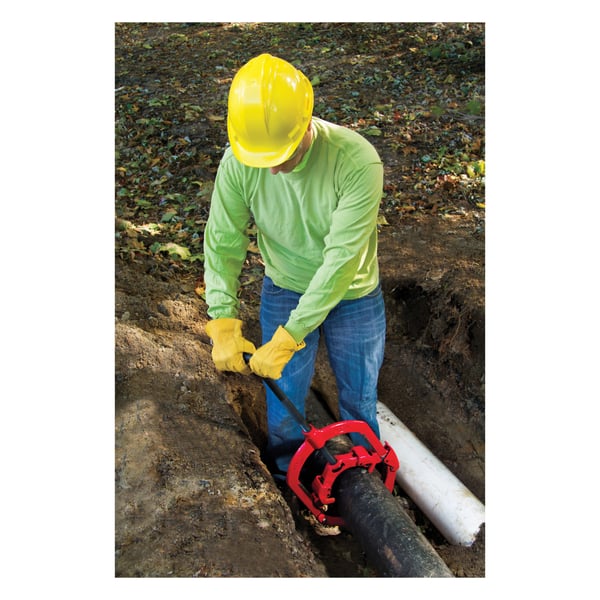

For use in ditch, underwater, overhead and in racks of pipe

Features

  • Another Reed invention that needs only 4 in of clearance around pipe
  • Efficient handle swing of only 90 to 110 deg
  • Opens with hinge to place cutter around the pipe
  • Can be used anywhere - in the ditch, underwater, overhead, in racks of pipe
  • A reed invention that needs only 4 in of clearance around pipe
  • HI6 cutter wheel
  • 114 to 182 mm OD actual pipe capacity
  • Replacement wheel pins for Ridgid® cutters: 3S, 4S, 6S, 44S, 466, 468, 472
