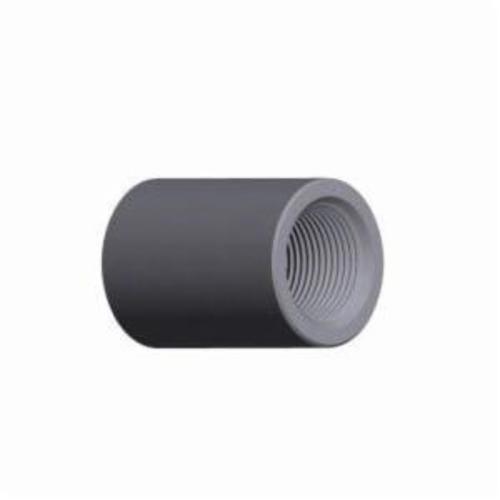

Capitol 12202013 Coupling, 1-1/4 in Nominal, Thread End Style, 3000 lb, Carbon Steel


Description

Capitol Coupling, Coupling Fitting/Connector, 1-1/4 in Nominal, Thread End Style, 2-5/8 in Length, 3000 lb Pressure Class, 300 psi Pressure, Forged Method of Manufacture, Carbon Steel, 360 deg F, 2-1/4 in OD Dimensions

Specifications

Dimensions 2-1/4 in OD
End Style Thread
Fitting/Connector Type Coupling
Length 2-5/8 in
Material Carbon Steel
Method of Manufacture Forged
Nominal Size 1-1/4 in
Pressure Class 3000 lb
Pressure Rating 300 psi
Temperature Rating 360 deg F

Standards and Approvals: ASME B16.11/B1.20.1, ASTM A105, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause birth defects. For more information go to www.P65Warnings.ca.gov
