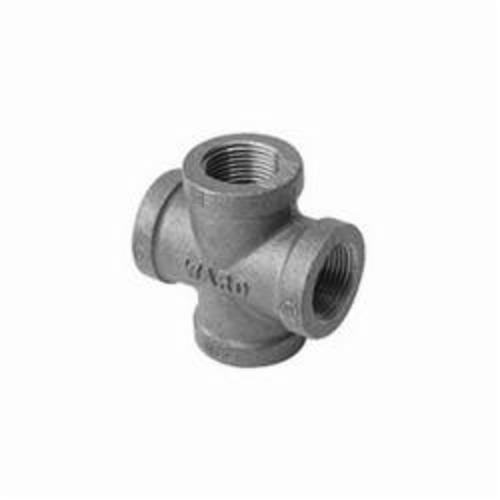

Ward Mfg 1B.NMCR Straight Pipe Cross, 1-1/4 in, FNPT, 150 lb, Malleable Iron, Galvanized, Domestic


Description

Ward Mfg Straight Pipe Cross, Fitting/Connector Type: Cross, 1-1/4 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Galvanized
Fitting/Connector Type Cross
Material Malleable Iron
Nominal Size 1-1/4 in
Pressure Class 150 lb
Pressure Rating 300 psi
Schedule Rating SCH 40/STD
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.14/B16.4/B1.20.1, ANSI B1.20.1, FM Approved, NSF 61-G, UL/ULC Listed

Features

  • Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more
  • Accurate form, length and straightness on threads for easy engagement
  • Chamfered openings for fast, easy engagement and assembly
  • Precision machining
  • Rust-Resistant coating
  • 1-3/4 in center to end
  • 0.67 in thread length
  • 1.04 in take out
