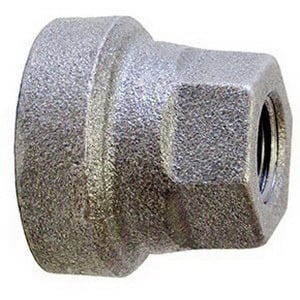

Anvil® 0300149606 FIG 367 Concentric Reducer, 1-1/4 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic


Description

Anvil® Concentric Reducer, Series: FIG 367, Fitting/Connector Type: Reducer, 1-1/4 x 1/2 in Nominal, FNPT, 1-5/8 in Length, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Reducer
Length 1-5/8 in
Material Cast Iron
Nominal Size 1-1/4 x 1/2 in
Pressure Class 125 lb
Pressure Rating 175 psi
Schedule Rating SCH 40/STD
Series FIG 367
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.4/B1.20.1, ASTM A126, cULus Listed, FM Approved

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
