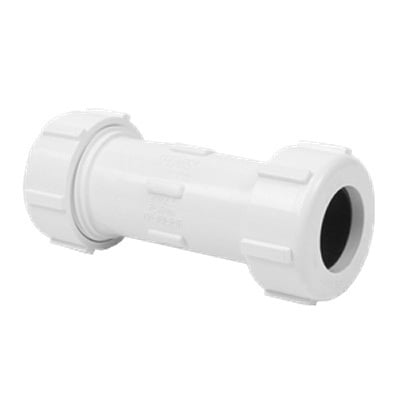

Spears® S110-40, 4 in nominal, Gasket end style, SCH 40, PVC, Buna-N Gasket seal, Domestic


Description

Spears® S110-40, Coupling Fitting/Connector, 4 in Nominal, Gasket End Style, SCH 40 Schedule, 150 psi Pressure, Molded Method of Manufacture, PVC, Buna-N Gasket Seal, White, 73 deg F, 6-3/4 in W Dimensions, Domestic/Import: Domestic

All thermoplastic compression couplings shall be constructed from Polyvinyl Chloride (PVC) Type I compound having a cell classification 12454 conforming to ASTM D1784. All gaskets provided in white compression coupling shall be Nitrile (Buna-N) and all gaskets provided in gray compression couplings shall be EPDM material. All compression couplings shall have an internal pressure rating of 200 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company. All Compression Couplings shall be certified for use in potable water by NSF® International. Compression couplings shall be used in cold water/fluid applications not to exceed 100 deg F.

Specifications

Color White
Dimensions 6-3/4 in W
Domestic/Import Domestic
End Style Gasket
Fitting/Connector Type Coupling
Material PVC
Method of Manufacture Molded
Nominal Size 4 in
Pressure Rating 150 psi
Schedule Rating SCH 40
Seal Material Buna-N Gasket
Temperature Rating 73 deg F

Country of Origin: United States

Standards and Approvals: ASTM D1784, NSF Approved

Features

  • Multi-featured design, PVC white and industrial PVC gray, easy-threaded compression nut converts to spigot coupling
  • Strong, buttress threaded compression nuts
  • NSF® approved for potable water use
  • Spigot conversion capability
  • Can be used as short-stroke expansion joint
