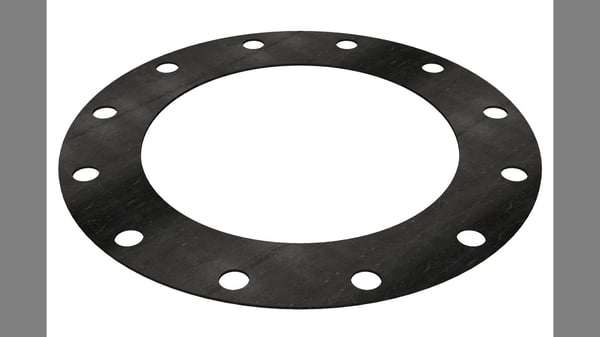

APG 13900FF125A1200FC Gasket, Neoprene, 12 in Nominal, 19 in OD 1/8 in THK, Class 150 Class, Domestic
APG 13900FF125A1200FC Gasket, Neoprene, 12 in Nominal, 19 in OD 1/8 in THK, Class 150 Class, Domestic
SKU: 2395
Manufacturer Part Number: 13900FF125A1200FC
Brand: APG
Description
APG, 13900FF125A1200FC, Gasket, 12 in Nominal, 12-3/4 in ID, 19 in OD, 1/8 in Thickness, 12 Bolt Holes, 1 in Bolt Hole, Class: Class 150, -20 to 170 deg F, Neoprene, Black, Domestic
Specifications
| Bolt Hole Size | 1 in |
| Class | Class 150 |
| Color | Black |
| Domestic/Import | Domestic |
| Inside Diameter | 12-3/4 in |
| Material | Neoprene |
| Nominal Size | 12 in |
| Number of Bolt Holes | 12 |
| Outside Diameter | 19 in |
| Temperature Rating | -20 to 170 deg F |
| Thickness | 1/8 in |
| Type | Full Face Gasket |
Country of Origin: United States
Application:
For bumpers, pads and sealing
Features
- Neoprene blend provides moderate resistance to oil and ozone
- For use in bumpers, pads, and sealing in general gasket and flange applications
- 17 in bolt hole circle
- 800 psi minimum tensile strength
- 60 +/- 5 Durometer meter
