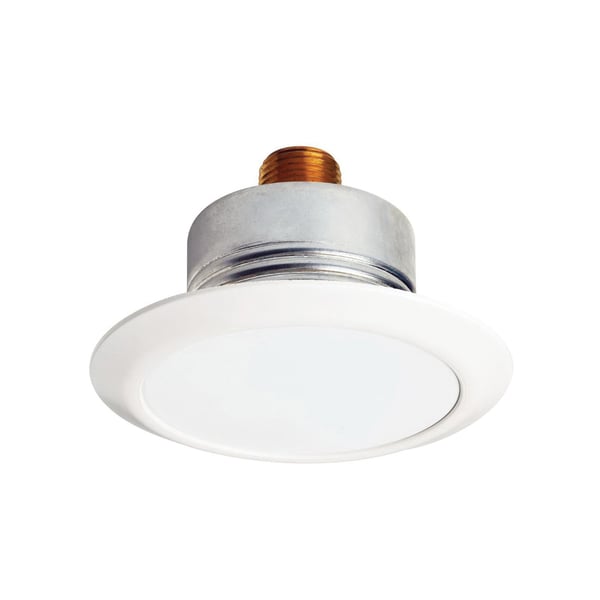

Victaulic® Victaulic® FireLock® S381PCQ410 V3802 Quick Response Adjustable Concealed Sprinkler, 175 psi, 1/2 in Thread, 5.6 Nominal K-Factor, NPT Connection


Description

Victaulic® FireLock® Concealed Sprinkler, Quick Response Adjustable, Series: V3802, 175 psi, 1/2 in, Nominal K-Factor: 5.6, NPT, 155 deg F, Plain Brass

This concealed, designer style sprinkler allows up to 1/2 in or 13 mm adjustment to accommodate concealment needs. The "standard" design provides a consistent hemispherical spray pattern. The separate two-piece mounting cup/cover plate allows easy installation and testing prior to ceiling installation. It also permits removal of suspended ceiling panels without system shutdown.

Specifications

Color Plain Brass
Connection Type NPT
Nominal K-Factor 5.6
Pressure Rating 175 psi
Series V3802
Temperature Rating 155 deg F
Thread Size 1/2 in
Type Quick Response Adjustable

Standards and Approvals: cULus Listed, FM Approved, LPCB Approved, CCC, CE 0832, CTP, GOST Standard

Application:
Commercial

Features

  • Wrench: V38-4, V38-5
  • 1/2 in orifice
  • Concealed pendent deflector
  • Light and ordinary hazard
  • Bronze per UNS C22000 deflector
  • Die cast brass 65-30 frame
