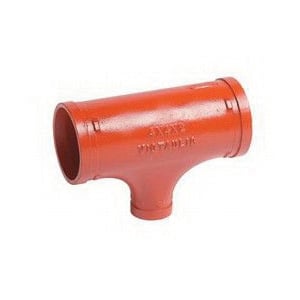

Victaulic® Victaulic® FC20025P00 25 Series Standard Reducing Tee, 2-1/2 x 2-1/2 x 2 in Nominal, Grooved End Style, Ductile Iron, Orange Painted, Import


Description

Victaulic® Reducing Tee, Standard, Series: 25 Series, Fitting/Connector Type: Tee, 2-1/2 x 2-1/2 x 2 in Nominal, Grooved, 7-1/2 in Length, 1000 psi, Ductile Iron, Orange Painted, Red, Import

Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation. Fittings conform to the pressure ratings of Style 77 flexible couplings. Not intended for use with Victaulic couplings for plain end pipe.

Specifications

Color Red
Domestic/Import Import
End Style Grooved
Finish Orange Painted
Fitting/Connector Type Tee
Length 7-1/2 in
Material Ductile Iron
Nominal Size 2-1/2 x 2-1/2 x 2 in
Pressure Rating 1000 psi
Series 25 Series
Type Standard

Standards and Approvals: ASTM A536 Grade 65-45-12, ASTM A536 Grade 65-45-12, ANSI/NSF 61/372, cULus Listed, FM/LPCB/CTP/ABS/LR/RINA Approved
