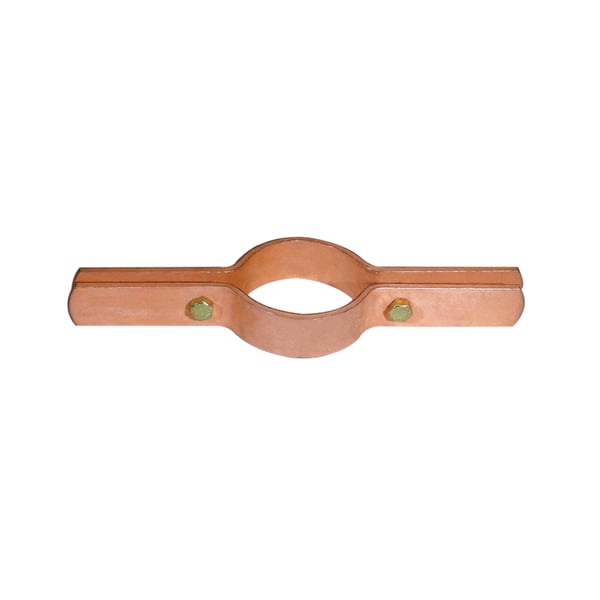

Anvil® 0500421037 FIG CT-121 Riser Clamp, 1 in Pipe, 3/8 in Dia Bolt, 120 lb Load, Carbon Steel, Copper Plated, Domestic


Description

Anvil® Riser Clamp, Series: FIG CT-121, 1 in Pipe, 3/8 in Bolt Dia, 120 lb, 21 ft-lb, Carbon Steel, Copper Plated, 9-3/8 in L x 1-1/4 in W, Domestic

Specifications

Bolt Diameter 3/8 in
Dimensions 9-3/8 in L x 1-1/4 in W
Domestic/Import Domestic
Finish Copper Plated
Load Capacity 120 lb
Material Carbon Steel
Pipe Size 1 in
Series FIG CT-121
Torque Rating 21 ft-lb

Country of Origin: United States

Standards and Approvals: ANSI/MSS SP-58-69

Application:
For support and steadying of copper tubing risers, either insulated or non-insulated

Features

  • Designed for fastening flange of “W” and “M” beam. Bottom hole tapped to accommodate hanger rod.
  • Rounded ears provide greater safety for personnel
  • Clamp is fitted and bolted preferably below a coupling or fitting on the tubing
