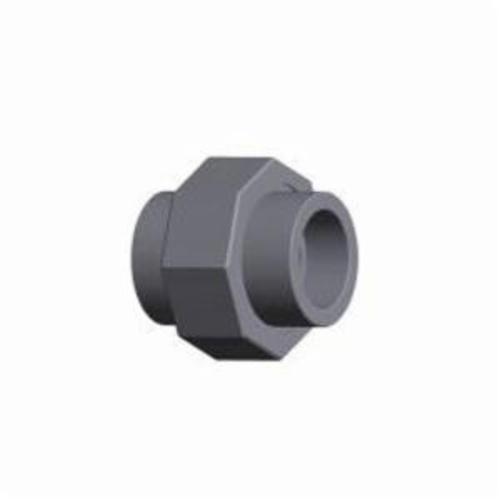

Capitol 12404010X X Series Union, 1 in Nominal, Socket Welded End Style, 3000 lb, Carbon Steel


Description

Capitol Union, Series: X Series, Union Fitting/Connector, 1 in Nominal, Socket Welded End Style, 2.546 in Hex, 2.44 in Length, 3000 lb Pressure Class, 300 psi Pressure, Forged Method of Manufacture, Carbon Steel, 360 deg F, 1.79 in OD Dimensions

Specifications

Dimensions 1.79 in OD
End Style Socket Welded
Fitting/Connector Type Union
Hex Size 2.546 in
Length 2.44 in
Material Carbon Steel
Method of Manufacture Forged
Nominal Size 1 in
Pressure Class 3000 lb
Pressure Rating 300 psi
Series X Series
Temperature Rating 360 deg F

Standards and Approvals: AAR M-404-42, ASME B1.20.1, ASME B1.1 Class 2A and 2B, ASME B38.10M, ASTM/ASME A/SA105, MSS SP-25, NACE MR0175, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause birth defects. For more information go to www.P65Warnings.ca.gov

Features

  • The carbon equivalent of these unions do not exceed the 0.47 maximum carbon
