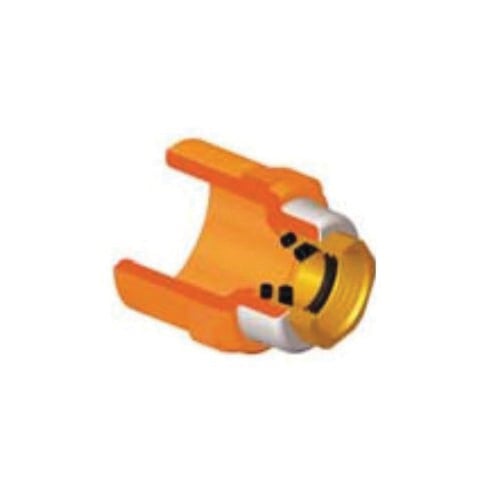

Spears® FlameGuard® TorqueSafe™ 4235-101 G Sprinkler Head Female Reducing Adapter, 3/4 x 1/2 in, Socket x FNPT, CPVC, Domestic


Description

Spears® FlameGuard® TorqueSafe™ Female Reducing Adapter, Sprinkler Head, Fitting/Connector Type: Adapter, 3/4 x 1/2 in Nominal, Socket x FNPT, 1-7/8 in Length, Molded, CPVC, Orange, 1-13/32 x 1-3/8 in Dia, Domestic

Spears® Patented Special Reinforced (SR) plastic female thread design is one of the most significant advancements in the use of CPVC Fire Sprinkler System threaded fittings. Not just an added ring, this unique precompression design compensates for expansion forces generated from tapered pipe thread joint make-up. Radial stress is no longer a problem in normal installations and easily managed in severe over-tightening situations.

Specifications

Color Orange
Dimensions 1-13/32 x 1-3/8 in Dia
Domestic/Import Domestic
End Style Socket x FNPT
Fitting/Connector Type Adapter
Length 1-7/8 in
Material CPVC
Method of Manufacture Molded
Nominal Size 3/4 x 1/2 in
Type Sprinkler Head

Country of Origin: United States

Standards and Approvals: NSF Approved

Features

  • Use no thread sealant
  • Gasket sealed brass thread insert style
