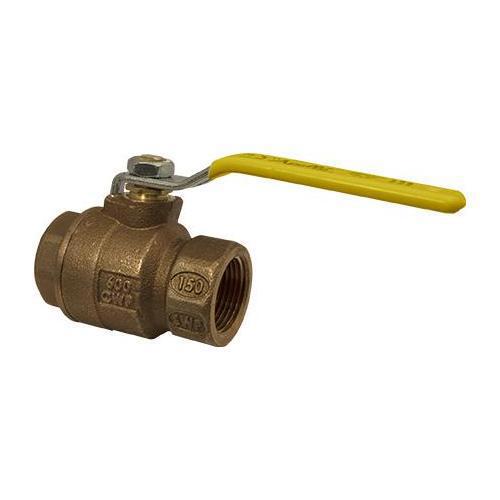

Apollo™ Apollo™ 77C10301A 77C-A 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic


Description

Apollo™, 77C10301A, Ball Valve, 2-Piece, Series: 77C-A, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 2.29 in Inlet to Outlet Length, 1.79 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77C Contractor Series ball valve features a dezincification resistant bronze body, premium multi-fill MPTFE seats and stem packing, and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants utilizing proven ASTM materials.

Specifications

Actuator Type Lever Operated
Ball Material Chrome Plated Brass
Body Material Bronze
Domestic/Import Domestic
End Style FNPT
Inlet to Outlet Length 2.29 in
Media Water
Nominal Size 1/2 in
Port Type Full
Pressure Rating 600 psi CWP
Series 77C-A
Softgoods Material RPTFE
Temperature Rating 450 deg F
Top to Inlet Center 1.79 in
Trim Material Brass Stem/RPTFE Seat
Type 2-Piece

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ASTM B16 Stem, ASTM B584 Retainer, CRN OC10908.5C, IAPMO R and T/UPC IGC Z1157, MSS SP-110, PROP65: Cancer and Reproductive Harm

Features

  • Blow-out proof stem
  • Adjustable stem packing
  • Full port solid ball design
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Zinc plated steel nut
  • Steel, zinc plated with vinyl grip handle
  • Standard lever and trim
  • 150 psi steam working pressure
