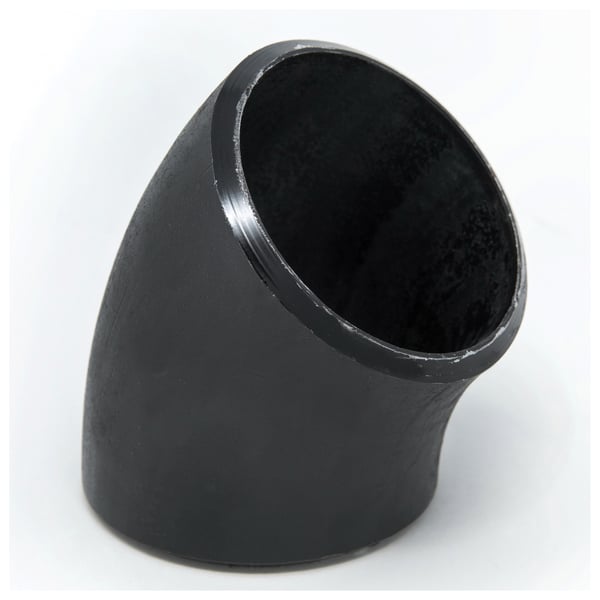

Weldbend® 020-022-000 Pipe Elbow, Carbon Steel, 2-1/2 in Nominal, SCH 40/STD, Butt Welded End Style


Description

Weldbend® Pipe Elbow, 45 deg Elbow Fitting/Connector, 2-1/2 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 0.203 in Thickness, 2583 lb Pressure, Carbon Steel, -20 to 650 deg F, 2.469 in ID x 2.88 in OD Dimensions

Specifications

Dimensions 2.469 in ID x 2.88 in OD
End Style Butt Welded
Fitting/Connector Type 45 deg Elbow
Material Carbon Steel
Nominal Size 2-1/2 in
Pressure Rating 2583 lb
Schedule Rating SCH 40/STD
Temperature Rating -20 to 650 deg F
Thickness 0.203 in

Warranty: Limited

Country of Origin: United States

Standards and Approvals: ASTM A234 Grade WPB, ASME B16.9
