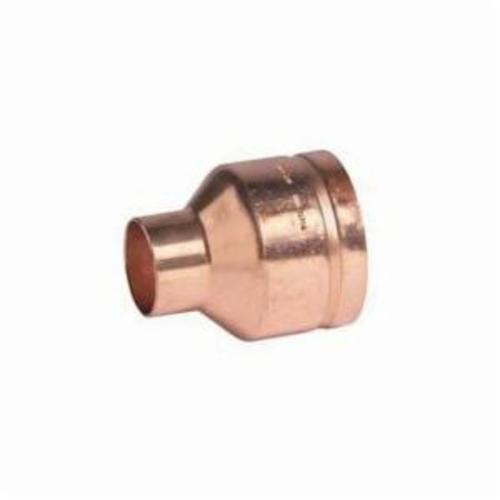

Victaulic® FC03652C00 Concentric Reducer, 2-1/2 x 1-1/2 in, Grooved x Cup, Wrot Copper


Description

Victaulic® Concentric Reducer, Series: 652, Fitting/Connector Type: Reducer, 2-1/2 x 1-1/2 Nominal, Grooved x Cup, 300, Wrot Copper, 3.45 in L

Full flow, standard radius fittings supplied roll grooved and ready for installation into copper systems using either a Style 607 coupling or Style 641 Vic-Flange adapter. Working pressures shown are based on the heaviest wall copper tubing for each standard.

Specifications

Dimensions 3.45 in L
End Style Grooved x Cup
Fitting/Connector Type Reducer
Material Wrot Copper
Nominal Size 2-1/2 x 1-1/2 in
Pressure Rating 300 psi
Series 652

Standards and Approvals: ASTM B75 C12200 or ASTM B152 C110001, FM Approved, UL/cULus Listed
