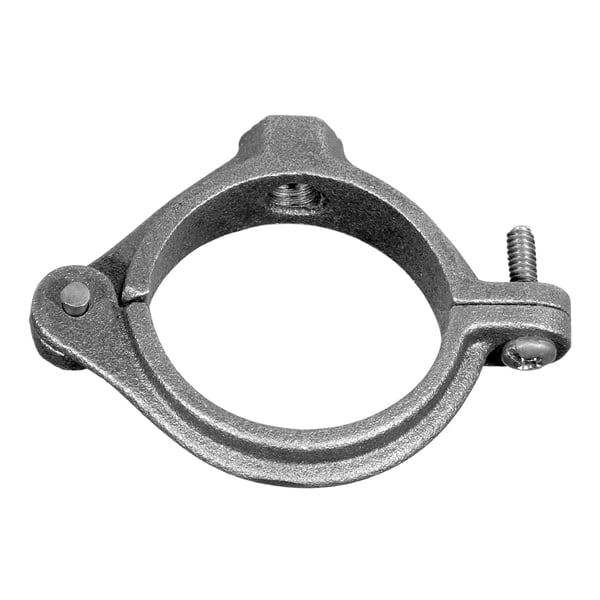

SPF/Anvil™ 0560500191 FIG 138R Extension Split Pipe Clamp, 1/2 in Pipe/Tube, 3/8 in Rod, 180 lb Load, Malleable Iron, Zinc Plated, Import


Description

SPF/Anvil™ Extension Split Pipe Clamp, Series: FIG 138R, 1/2 in Pipe/Tube, 3/8 in Rod, 180 lb, Malleable Iron, Zinc Plated, For Use With: 3/4 Through 3 in Pipe, 450 deg F, Import

Specifications

Domestic/Import Import
Finish Zinc Plated
Load Capacity 180 lb
Material Malleable Iron
Pipe/Tube Size 1/2 in
Rod Size 3/8 in
Series FIG 138R
Suitable For Use With 3/4 Through 3 in Pipe
Temperature Rating 450 deg F

Country of Origin: China

Standards and Approvals: ANSI/MSS SP-69/58, Federal Specification A-A-1192A

Application:
For non-insulated stationary pipe lines

Features

  • Internationally Manufactured. Rapid installation assured by hinged design and single closure screw.
  • Rapid installation assured by hinged design and single closure screw
  • When used with nipple this clamp is particularly adaptive for use on refrigeration or compressor piping subject to vibration
  • Interior design provides firm grip on pipe
  • Inside of ring tapered to prevent entrapment of condensed moisture
