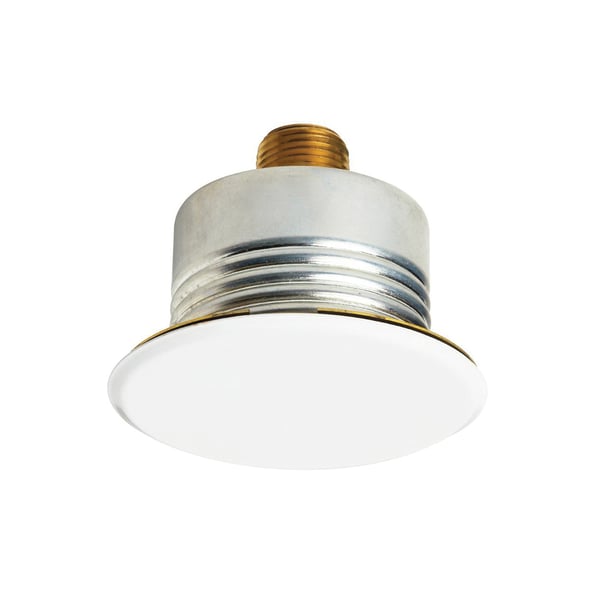

Victaulic® FireLock® S381NCQ41L V3806 Quick Response Low Flow Adjustable Concealed Pendent Sprinkler, 175/8.2 psi, 1/2 in Thread, 5.6 Nominal K-Factor, NPT Connection


Description

Victaulic® FireLock® Concealed Pendent Sprinkler, Quick Response Low Flow Adjustable, Series: V3806, 175/8.2 psi, 1/2 in, Nominal K-Factor: 5.6, NPT, 155 deg F, Brass Plated

The V3806 concealed, designer style sprinkler allows up to 1/4"/8 mm adjustment to accommodate concealment needs. The separate two-piece mounting cup/cover plate allows easy installation and testing prior to ceiling installation. It also permits removal of suspended ceiling panels without system shutdown. Model V3806 is UL Listed for use under smooth flat horizontal ceilings. The design incorporates state-of-the-art, heat responsive, frangible glass bulb design (quick response) for prompt, precise operation. The V3806 sprinkler is now available with the aesthetically pleasing flat cover plate, which also is available in various finishes to meet many design requirements.

Specifications

Color Brass Plated
Connection Type NPT
Nominal K-Factor 5.6
Pressure Rating 175/8.2 psi
Series V3806
Temperature Rating 155 deg F
Thread Size 1/2 in
Type Quick Response Low Flow Adjustable

Standards and Approvals: cULus Listed

Application:
Residential

Features

  • Wrench: V38-4
  • 1/2 in orifice
  • Bronze per UNS C22000 deflector
  • Die cast brass 65-30 frame
  • 175 psi working/8.2 psi operating pressure
