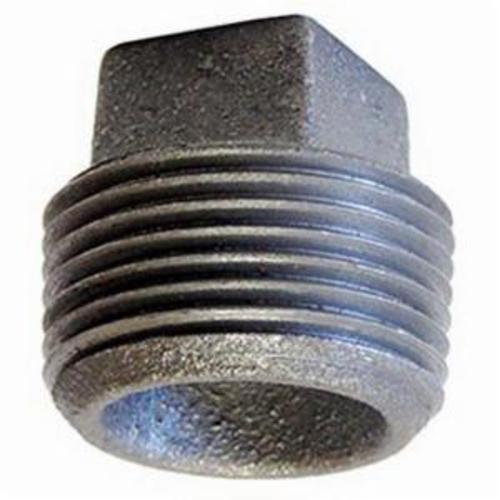

Anvil® Anvil® 0318902566 FIG 387 Cored Square Head Plug, 2 in Nominal, MNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic


Description

Anvil® Plug, Cored Square Head, Series: FIG 387, Fitting/Connector Type: Plug, 2 in Nominal, MNPT, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471).

Specifications

Domestic/Import Domestic
End Style MNPT
Finish Black Oxide
Fitting/Connector Type Plug
Material Cast Iron
Nominal Size 2 in
Pressure Class 125 lb
Pressure Rating 175 psi
Schedule Rating SCH 40/STD
Series FIG 387
Temperature Rating -20 to 150 deg F
Type Cored Square Head

Country of Origin: United States

Standards and Approvals: ASME B16.4/B1.20.1, cULus Listed, FM Approved

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
