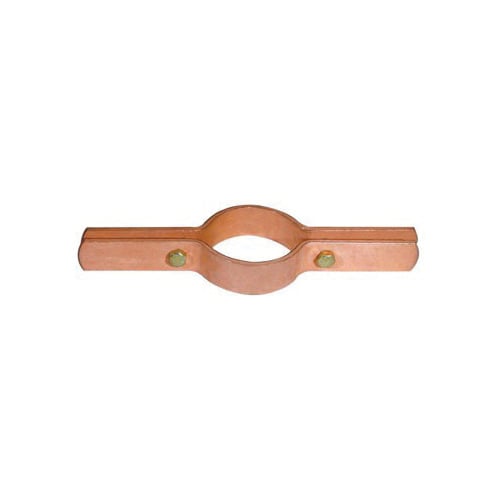

Anvil® Anvil® 0500421060 FIG CT-121 Riser Clamp, 2 in Pipe, 5/16 in Dia Bolt, 150 lb Load, Carbon Steel, Copper Plated, Domestic


Description

Anvil® Riser Clamp, Series: FIG CT-121, 2 in Pipe, 5/16 in Bolt Dia, 150 lb, 21 ft-lb, Carbon Steel, Copper Plated, 10-3/8 in L x 1-1/4 in W, Domestic

Specifications

Bolt Diameter 5/16 in
Dimensions 10-3/8 in L x 1-1/4 in W
Domestic/Import Domestic
Finish Copper Plated
Load Capacity 150 lb
Material Carbon Steel
Pipe Size 2 in
Series FIG CT-121
Torque Rating 21 ft-lb

Country of Origin: United States

Standards and Approvals: ANSI/MSS SP-69/58

Application:
For support and steadying of insulated or non-insulated copper tubing risers

Features

  • Designed for fastening flange of “W” and “M” beam. Bottom hole tapped to accommodate hanger rod.
  • Rounded ears provide greater safety for personnel
  • Recommended for support and steadying of copper tube risers, either insulated or non-insulated, this product is not intended for use with hanger rods
