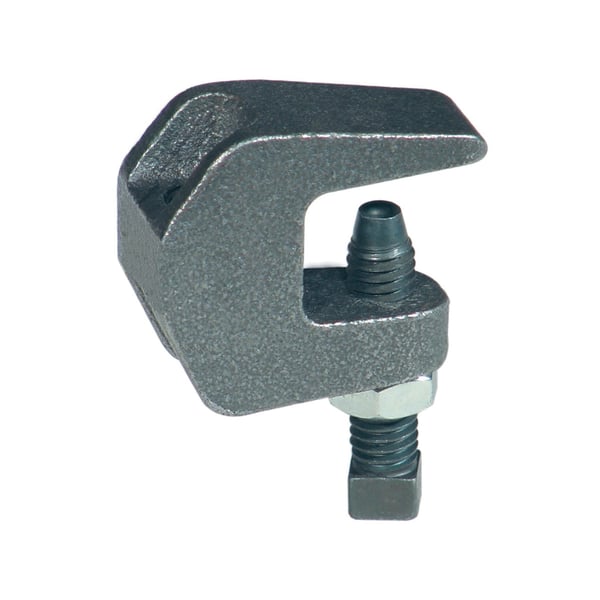

Anvil® 0500009071 FIG 92 Universal Standard Throat C-Clamp, 1/2 in Rod, 950 lb Top/760 lb Bottom Load, Ductile Iron, Plain

Anvil®

SKU: 52

Manufacturer Part Number: 0500009071

UPC: 690291134388

Anvil® C-Clamp, Universal Standard Throat, Series: FIG 92, 1/2 in Rod, 950 lb Top/760 lb Bottom, 125 in-lb Torque, Ductile Iron, Plain, 450 deg F

Includes: 1/2 in Set Screw

Country of Origin: United States

Standards and Approvals: cULus Listed, FM Approved

Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of
They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
Secured in place by a cup-pointed set screw tightened against the flange, a jam nut is provided for tightening the set screw against the body casting
Thru tapping of the body casting permits extended adjustment of the threaded rod
Can be used with Fig 89X retaining clip for seismic applications
Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in
Standard throat universal c-type clamp
Ductile iron, hardened steel cup point set screw and locknut
