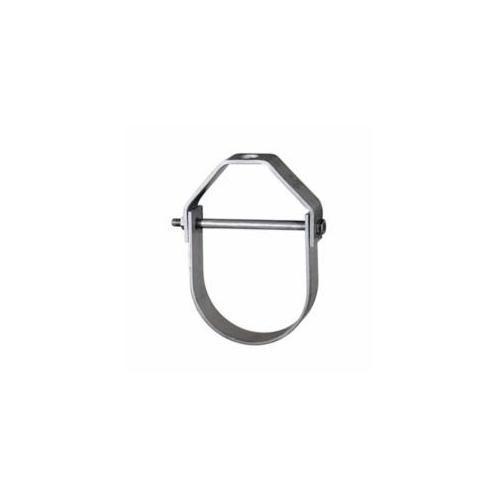

Anvil® 0500173034 FIG 260 Adjustable Clevis Hanger, 1 in Pipe, 3/8 in Rod, 730 lb Load, Carbon Steel, Black Oxide

Anvil®

SKU: 53181

Manufacturer Part Number: 0500173034

UPC: 690291140495

Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 1 in Pipe, 3/8 in Rod, 730 lb, Carbon Steel, Black Oxide

Country of Origin: United States

Standards and Approvals: A-A-1192A (Type 1), ANSI/MSS SP-69/SP-58 (Type 1), cULus Listed, FM Approved, WW-H-171-E (Type 1), UL/ULC Listed

Application:

For suspension of stationary pipe lines

Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized.
Hanger load nut above clevis must be tightened securely to assure proper hanger performance
Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
Tighten upper nut after adjustment
Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
