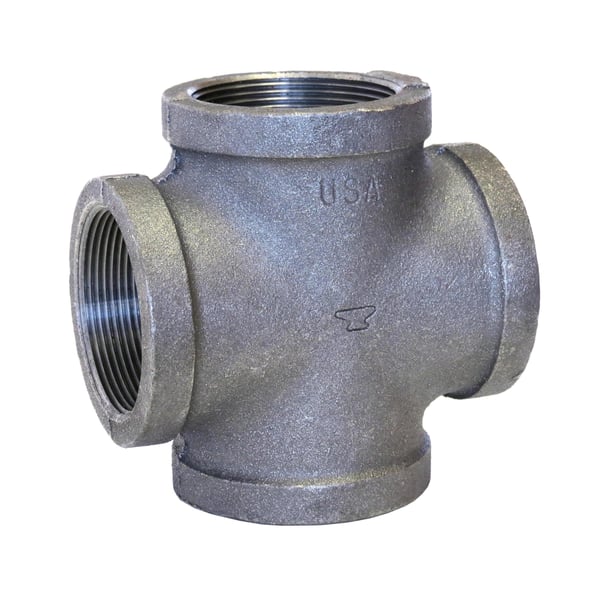

Anvil® Anvil® 0310069208 FIG 1107 Standard Pipe Cross, 1/8 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic


Description

Anvil® Pipe Cross, Standard, Series: FIG 1107, Fitting/Connector Type: Cross, 1/8 in Nominal, FNPT, 150 lb, 300 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Cross
Material Malleable Iron
Nominal Size 1/8 in
Pressure Class 150 lb
Pressure Rating 300 psi
Series FIG 1107
Temperature Rating -20 to 150 deg F
Type Standard

Country of Origin: United States

Standards and Approvals: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61

Features

  • Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
