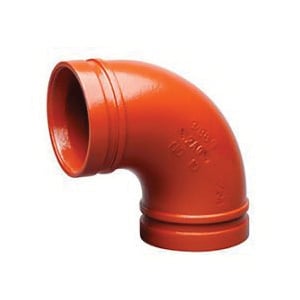

Victaulic® F020010P00 10 Series Standard Elbow, 2 in Nominal, Grooved End Style, Ductile Iron, Orange Painted, Import


Description

Victaulic® Elbow, Standard, Series: 10 Series, Fitting/Connector Type: 90 deg Elbow, 2 in Nominal, Grooved, 1000 psi, Ductile Iron, Orange Painted, 2-3/8 in OD, Import

Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation. Fittings conform to the pressure ratings of Style 77 flexible couplings. Not intended for use with Victaulic couplings for plain end pipe.

Specifications

Dimensions 2-3/8 in OD
Domestic/Import Import
End Style Grooved
Finish Orange Painted
Fitting/Connector Type 90 deg Elbow
Material Ductile Iron
Nominal Size 2 in
Pressure Rating 1000 psi
Series 10 Series
Type Standard

Standards and Approvals: ASTM A536 Grade 65-45-12, ASTM A536 Grade 65-45-12, cULus Listed, FM/ LPCB/CTP/VDS/ABS/LR/RINA/DNV-GL/KR Approved

Application:
For connects pipe, provides change in direction and adapts sizes or components

Features

  • Standard fitting pressure ratings conform to ratings of installed coupling
  • All fittings supplied with grooves or shoulders for fast installation
  • Fittings available from 3/4 - 24 in
