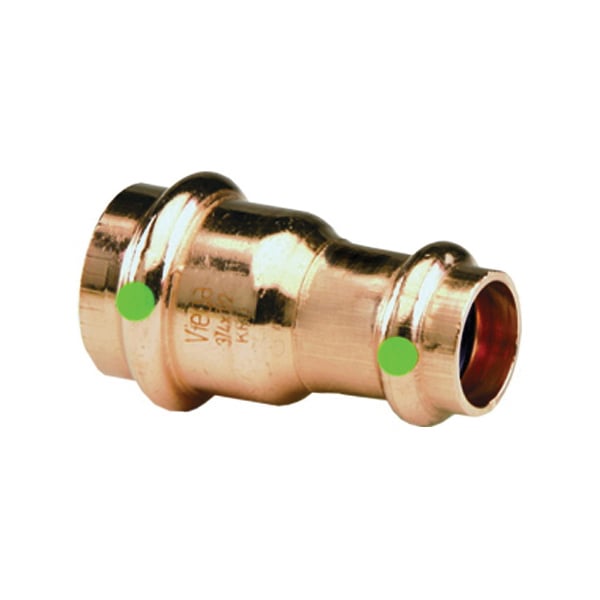

ProPress® 22328 Pipe Reducer, 2 x 1-1/4 in Nominal, Press End Style, Copper, Import
ProPress® 22328 Pipe Reducer, 2 x 1-1/4 in Nominal, Press End Style, Copper, Import
SKU: 53996
Manufacturer Part Number: 22328
UPC: 691514223285
Description
Specifications
| Dimensions | 3.43 in L |
| Domestic/Import | Import |
| End Style | Press |
| Fitting/Connector Type | Reducing Coupling |
| Material | Copper |
| Nominal Size | 2 x 1-1/4 in |
| Pressure Rating | 200 psi |
| Temperature Rating | 0 to 250 deg F |
Warranty: Limited
Country of Origin: Germany
Standards and Approvals: ASTM B88, CSA Certified, FM Approved, IAPMO Certified, NSF 61G, UL Listed
Features
- Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
- Reliable- achieve a consistent, strong, reliable, watertight seal
- The high strength connection, when installed properly, is guaranteed for 50 years
- Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
- Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
- Requires less equipment
- Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
- Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
- Viega smart Connect® feature is available on all of our fittings and most of our valves
- Powder coating isolates the dissimilar metals, preventing electrolysis
- Stainless steel grip ring, plastic snap ring flange
- Permanent connection
- Consistent professional appearance
