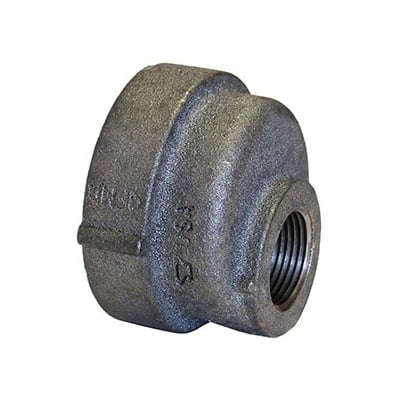

Anvil® Anvil® 0300154804 FIG 368 Eccentric Reducer, 2 x 1 in, FNPT, 125 lb, Cast Iron, Black, Domestic


Description

Anvil® Eccentric Reducer, Series: FIG 368, Fitting/Connector Type: Reducer, 2 x 1 in Nominal, FNPT, 2-1/16 in Length, SCH 40/STD, 125 lb, 175/125 psi, Cast Iron, Black, Black, -20 to 150 deg F, 2-1/16 in W, Domestic

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.

Specifications

Color Black
Dimensions 2-1/16 in W
Domestic/Import Domestic
End Style FNPT
Finish Black
Fitting/Connector Type Reducer
Length 2-1/16 in
Material Cast Iron
Nominal Size 2 x 1 in
Pressure Class 125 lb
Pressure Rating 175/125 psi
Schedule Rating SCH 40/STD
Series FIG 368
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.4/B1.20.1, ASTM A126, cULus Listed, FM Approved

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
