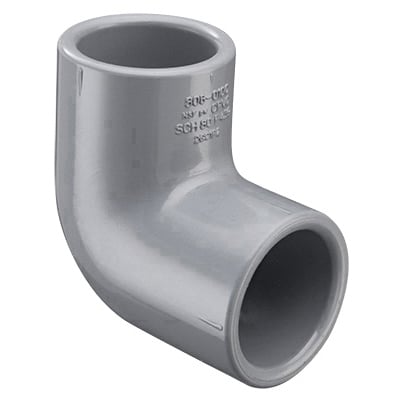

Spears® 806-005C Standard 90 deg Elbow, 1/2 in, Socket, SCH 80/XH, CPVC, Domestic


Description

Spears® Elbow, Standard, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal, Socket, SCH 80/XH, 150 psi, Molded, CPVC, Gray, 73 deg F, Domestic

All CPVC schedule 80 fittings shall be produced by Spears® Manufacturing Company from CPVC materials, cell classification 23447 conforming to ASTM Standard D 1784. All injection-molded fittings through 12 in shall be manufactured in compliance to ASTM F 439 and Certified by NSF® International for use with potable water service. All 14 in through 24 in and fabricated fittings shall be produced in accordance with Spears® Specifications. All CPVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5.

Specifications

Color Gray
Domestic/Import Domestic
End Style Socket
Fitting/Connector Type 90 deg Elbow
Material CPVC
Method of Manufacture Molded
Nominal Size 1/2 in
Pressure Rating 150 psi
Schedule Rating SCH 80/XH
Temperature Rating 73 deg F
Type Standard

Country of Origin: United States

Standards and Approvals: ASTM D-1784/F-437/F-439/F-441, NSF Approved
