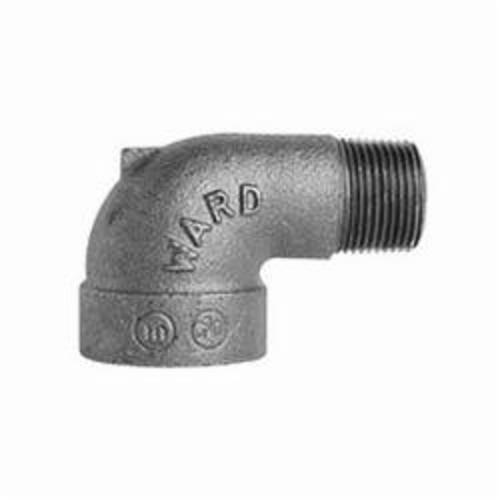

Ward Mfg E.NMSL Street Elbow, 3/4 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic
Ward Mfg E.NMSL Street Elbow, 3/4 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic
SKU: 5995
Manufacturer Part Number: E.NMSL
UPC: 662467435810
Description
Specifications
Domestic/Import | Domestic |
End Style | MNPT x FNPT |
Finish | Galvanized |
Fitting/Connector Type | 90 deg Elbow |
Material | Malleable Iron |
Nominal Size | 3/4 in |
Pressure Class | 150 lb |
Pressure Rating | 300 psi |
Schedule Rating | SCH 40/STD |
Temperature Rating | -20 to 150 deg F |
Country of Origin: United States
Standards and Approvals: ASME B16.14/B16.4/B1.20.1, ANSI B1.20.1, FM Approved, NSF 61-G, UL/ULC Listed, WW P521
Features
- Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-Resistant coating
- 1.31 in center to female end
- 1.89 in center to male end
- 0.69 in dia male end port
- 1/2 in L internal x 0.55 in L external thread
- 1.34 in male end x 0.76 in female end take out
