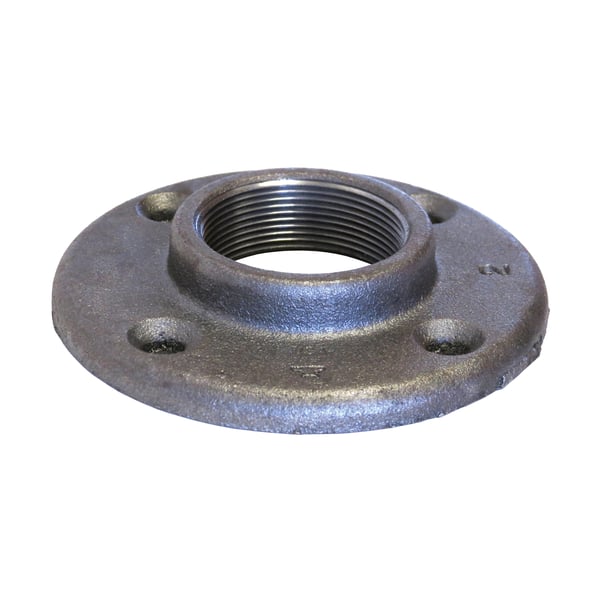

Anvil® Anvil® 0310105002 FIG 1190 Floor Flange, 1/2 in Nominal, Malleable Iron, 150 lb, Black Oxide, Domestic


Description

Anvil® Floor Flange, Series: FIG 1190, 1/2 in Nominal, 2-1/2 in Bolt Circle, 4 Bolt Holes, 1/4 in, 3-1/2 in Outside Dia, 300 psi, 150 lb, -20 to 350 deg F, Malleable Iron, Black Oxide, Domestic

Anvil international offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).

Specifications

Bolt Circle Diameter 2-1/2 in
Bolt Hole Size 1/4 in
Domestic/Import Domestic
Finish Black Oxide
Material Malleable Iron
Nominal Size 1/2 in
Number of Bolt Holes 4
Outside Diameter 3-1/2 in
Pressure Class 150 lb
Pressure Rating 300 psi
Series FIG 1190
Temperature Rating -20 to 350 deg F

Country of Origin: United States

Standards and Approvals: ASTM A197, cULus Listed, FM Approved, NSF/ANSI 61

Features

  • Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
