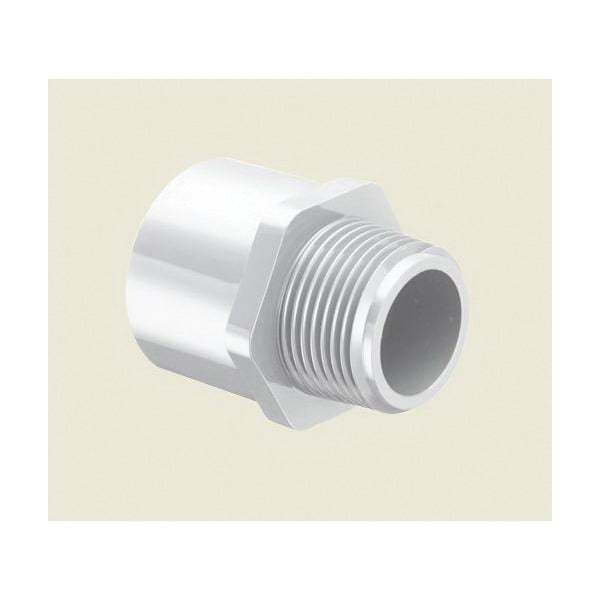

Spears® 436-007 Standard, 3/4 in nominal, Socket x MNPT end style, SCH 40, PVC, Domestic


Description

Spears® 436-007, Standard, Adapter Fitting/Connector, 3/4 in Nominal, Socket x MNPT End Style, 1-23/32 in Length, SCH 40 Schedule, Molded Method of Manufacture, PVC, White, 1-5/16 in H Dimensions, Domestic/Import: Domestic

Spears® SCH 40/STD PVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure the very best PVC fittings available.

Specifications

Color White
Dimensions 1-5/16 in H
Domestic/Import Domestic
End Style Socket x MNPT
Fitting/Connector Type Adapter
Length 1-23/32 in
Material PVC
Method of Manufacture Molded
Nominal Size 3/4 in
Schedule Rating SCH 40/STD
Type Standard

Country of Origin: United States

Standards and Approvals: ASTM D1784, ASTM D2466, NSF Approved

Features

  • Exceptional chemical and corrosion resistance
  • High temperature ratings
  • Lower installation costs
  • Higher flow capacity
  • Additional fabricated configurations through 36 in
  • Advanced design specialty fittings
