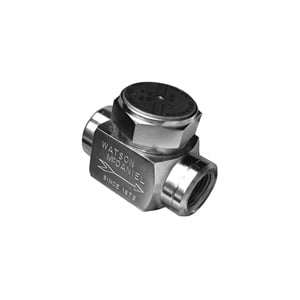

Watson McDaniel TD600-13-N Thermodynamic Steam Trap, 3/4 in, NPT, 800 deg F, 600 psig, 420F Stainless Steel, Domestic


Description

Watson McDaniel Thermodynamic Steam Trap, Series: TD600, 3/4 in Nominal Size, NPT, 2.81 in Length, 600 psig, 420F Stainless Steel, 800 deg F, 2.38 in H x 1.75 in W, Domestic

The TD600 Thermodynamic Steam Trap is commonly used as a drip trap on steam mains and steam supply lines. These traps can be used on tracing applications; however, thermostatic traps are normally recommended for this service. Ideal for outdoor applications that are subject to freezing and for superheated steam conditions.

Specifications

Dimensions 2.38 in H x 1.75 in W
Domestic/Import Domestic
End Style NPT
Length 2.81 in
Material 420F Stainless Steel
Nominal Size 3/4 in
Pressure Rating 600 psig
Series TD600
Temperature Rating 800 deg F

Country of Origin: United States

Features

  • 4840 lb/hr maximum capacity
  • Hardened stainless steel seat and disc for extended service life even at high pressure
  • Single trap will operate over the entire pressure range of 3.5 to 600 psig (recommended above 30 psig)
  • Suitable for superheated steam
  • Freeze-proof when trap is piped in a vertical orientation for complete drainage of condensate
  • Three hole balanced discharge extends life of the seat area
  • Trap will function in any orientation (horizontal preferred)
