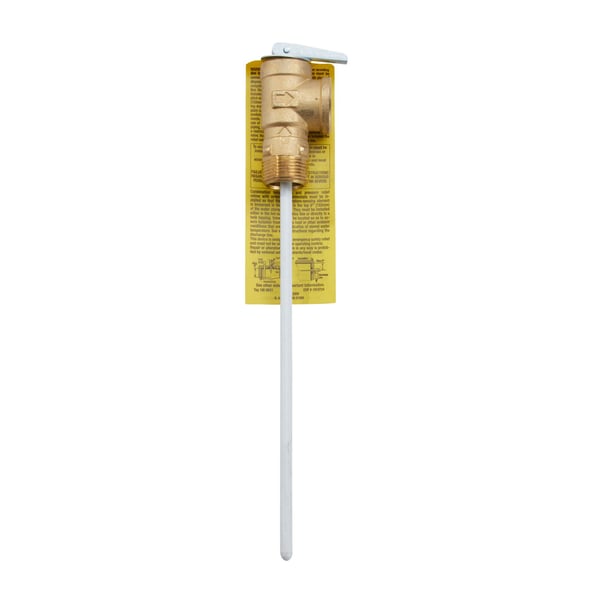

WATTS® 0066110 100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Brass Body


Description

WATTS®, 0066110, Temperature/Pressure Relief Valve, Self-Closing, Series: 100XL, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, Media: Water, Test Lever Actuator, Brass Body

Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

Specifications

Actuator Type Test Lever
Body Material Brass
End Style MNPT x FNPT
Media Water
Nominal Size 3/4 in
Pressure Rating 150 psi
Series 100XL
Temperature Rating 210 deg F
Type Self-Closing

Warranty: Limited

Country of Origin: United States

Standards and Approvals: ASME Specified, CSA Certified, PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Application:
Water Heater and Hot Water Storage Tank

Features

  • This device is designed for emergency safety relief and shall not be used as an operating control
  • Maximum system operating pressure must not exceed 75% of valve set pressure
  • Inquire with governing authorities for local installation requirements
  • Stainless steel spring
  • Thermostat is accurate and proven exclusively designed and manufactured by WATTS
  • Features a unique thermostat with special thermo-bonded coating
