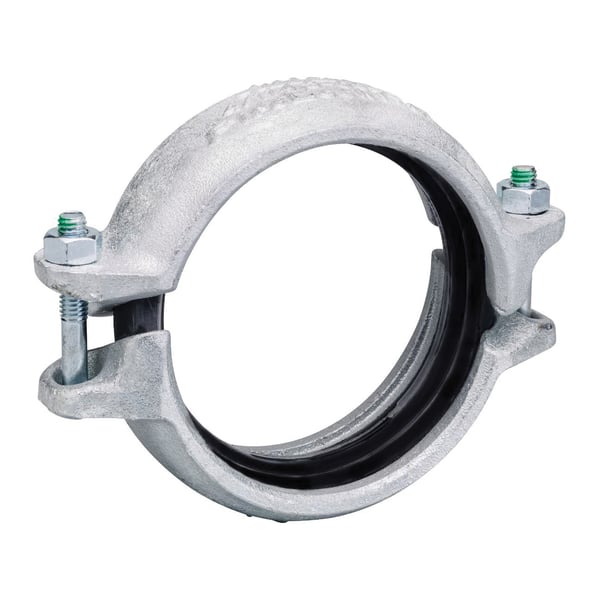

Victaulic® FireLock EZ™ L01409NGE0 009N Rigid Coupling, 1-1/2 in Nominal, Ductile Iron, Hot Dipped Galvanized


Description

Victaulic® FireLock EZ™ Rigid Coupling, Series: 009N, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, 3 in Thickness, 360 psi, Ductile Iron, Hot Dipped Galvanized, 1.9 in OD x 5.13 in W

Specifications

Dimensions 1.9 in OD x 5.13 in W
Finish Hot Dipped Galvanized
Fitting/Connector Type Coupling
Material Ductile Iron
Nominal Size 1-1/2 in
Pressure Rating 360 psi
Series 009N
Thickness 3 in

Standards and Approvals: cULus Listed, FM Approved, LPCB C104-1a/36, VdS Approved

Features

  • Angled bolt pad provides rigidity
  • Joins carbon steel pipe
  • Provides a rigid pipe joint designed to restrict axial or angular movement
  • Grade "E" Type A EPDM gasket
  • With carbon steel oval neck track bolts and nuts
  • 360 psi working pressure
