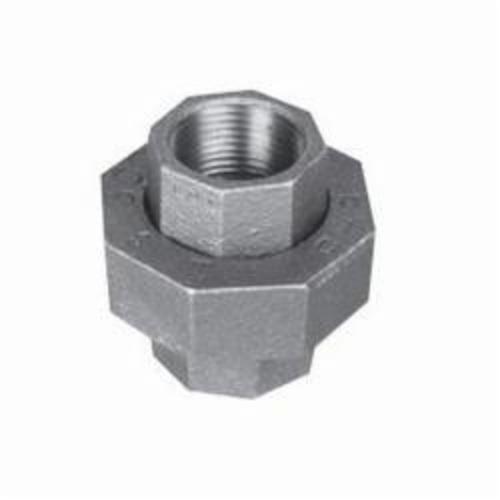

Ward Mfg C.NU Pipe Union, 3/8 in, Brass x Iron Seat, 150 lb, Malleable Iron, Galvanized, Domestic


Description

Ward Mfg Pipe Union, Fitting/Connector Type: Union, 3/8 in Nominal, Brass x Iron Seat, 1.61 in Length, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.

Specifications

Domestic/Import Domestic
End Style Brass x Iron Seat
Finish Galvanized
Fitting/Connector Type Union
Length 1.61 in
Material Malleable Iron
Nominal Size 3/8 in
Pressure Class 150 lb
Pressure Rating 300 psi
Schedule Rating SCH 40/STD
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.14/B16.4/B1.20.1, ASNI B16.39/B1.20.1, ASTM A197/A153, FM Approved, NSF 61-G, UL/ULC Listed, WW U531

Features

  • Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more
  • Accurate form, length and straightness on threads for easy engagement
  • Chamfered openings for fast, easy engagement and assembly
  • Precision machining
  • Rust-Resistant coating
  • 0.36 in thread length
  • 0.52 in thru hole
  • 1.26 in nut width
