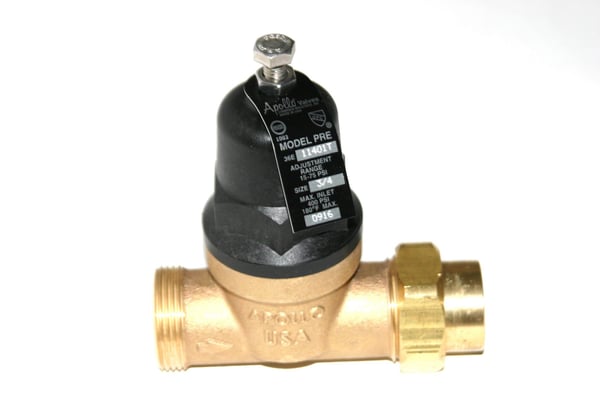

Apollo™ 36E11401T 36E Pressure Reducing Valve, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic


Description

Apollo™, 36E11401T, Pressure Reducing Valve, Series: 36E, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 180 deg F, Media: Water, 4.39 in Inlet to Outlet Length, Bronze Body, EPDM Trim, 6 in H Dimensions, Domestic

The APOLLOPRESS® Model PRE-PR (36E Series) Pressure Reducing Valve with Press Connections is easily installed to protect residential and commercial water distribution systems by automatically reducing excessive supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Specifications

Body Material Bronze
Dimensions 6 in H
Domestic/Import Domestic
End Style Single Union x FNPT
Inlet to Outlet Length 4.39 in
Media Water
Nominal Size 3/4 in
Pressure Range 15 to 75 psi
Series 36E
Softgoods Material EPDM
Temperature Rating 180 deg F
Trim Material EPDM

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ARRA Compliant, ASTM B584 Body, ASSE 1003-2009, CSA B356, CSA Certified, cUPC Listed, cCSAus Certified, NSF Approved, UPC Listed, PROP65: Cancer and Reproductive Harm

Application:
Residential and Commercial Applications

Features

  • Fast, reliable, economical press installation
  • Ridgid xl press tool compatible
  • Leak before Press technology
  • Balanced piston design
  • Sealed cage for vault installations
  • Built-in thermal expansion by-pass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • High flow/high efficiency design
  • Factory tested and preset at 60 or 100 psi
  • EPDM O-ring
  • EPDM seat disc
