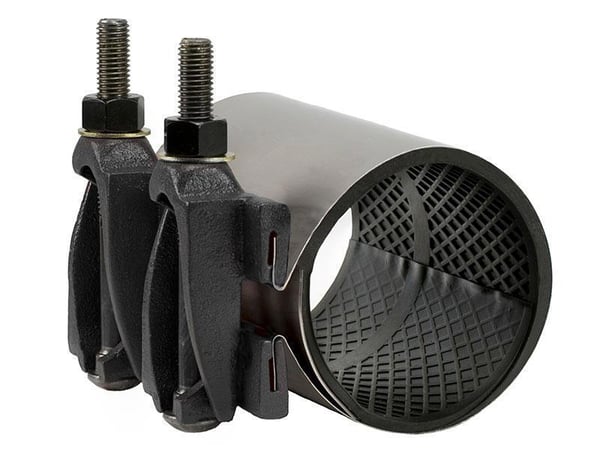

JCM Industries JCM Industries 101-0690-12 Band Clamp, 6 in Pipe, Ductile Iron/Stainless Steel, Prime Coated
JCM Industries JCM Industries 101-0690-12 Band Clamp, 6 in Pipe, Ductile Iron/Stainless Steel, Prime Coated
SKU: 641
Manufacturer Part Number: 101-0690-12
UPC: 067039710317
Brand: JCM Industries
Description
Specifications
| Dimensions | 12 in W |
| Finish | Prime Coated |
| Grade | 304 |
| Material | Ductile Iron/Stainless Steel |
| Outside Diameter | 6.85 to 7.25 in |
| Pipe Size | 6 in |
| Temperature Rating | -40 to 150 deg F |
Standards and Approvals: ANSI Specified/ASTM Specified/NSF Approved
Features
- Heavy Duty Bolting Lug Unit - Substantial high-strength, low alloy ductile iron lugs provide strength and weight to withstand high bolt torques for greatest gasket compression. Specially balanced, low profile lug design ensures engagement of the clamp with efficient transfer of bolt torque energy from the lug to the gasket. Mutually supporting sliding fingers aid bolt alignment and inhibits distortion during tightening. Oval neck track bolts securely catch in the canted ears and eliminate turning or rotation during tightening.
- Heavy Gauge Stainless Steel Band - Maximum thickness of stainless steel band provides full gasket compression on the circumference of the pipe.
- Positive Attachment of Band to Lug - Positive attachment of the heavy stainless steel band to the lug unit is accomplished with mechanical compression of the lug and calculated weld points. This prevents band pull out during or after installation. Drop-in, Swing Away Bolts - Eases installation with the bolt nut and washer intact with no loose parts. Independent bolts enables simple replacement should damage occur
- Thick, Gridded Gasket - 1/4 in thick gasket (sizes 3 in and larger) conforms to the pipe wall and fills surface pits and voids to assist sealing on irregular pipe surfaces. Molded In Stainless Steel Bridge Plate - blocks pinched gasket problems associated with glued-on plates, provides an even surface for ease of installation and full stainless steel encirclement protection.
