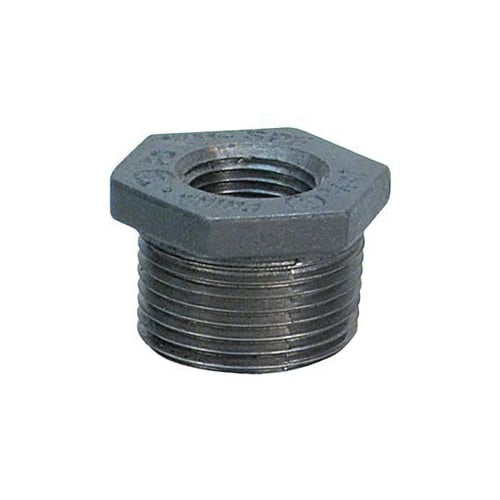

SPF/Anvil™ SPF/Anvil™ 0840600001 FIG 3283 Bushing, 1 x 1/2 in Nominal, Screwed End Style, Ductile Iron, Black


Description

SPF/Anvil™ Bushing, Series: FIG 3283, Fitting/Connector: Bushing, 1 x 1/2 in Nominal, Screwed End Style, 1.42 in Hex, SCH 40/STD Schedule, 500 psi Pressure, Ductile Iron, Black

SCI ductile iron pipe fittings conform to ASME B16.3 dimensions. Bushings and couplings conform to ASM B16.14. The threads are NPT per ANSI/ASME B1.20.1. Ductile iron is ASTM A536 class 65-45-12. All SCI ductile iron fittings are UL and ULC listed and FM approved.

Specifications

End Style Screwed
Finish Black
Fitting/Connector Type Bushing
Hex Size 1.42 in
Material Ductile Iron
Nominal Size 1 x 1/2 in
Pressure Rating 500 psi
Schedule Rating SCH 40/STD
Series FIG 3283

Country of Origin: United States

Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.14, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed

Features

  • Internationally Manufactured Ductile Iron Pipe Fitting.
