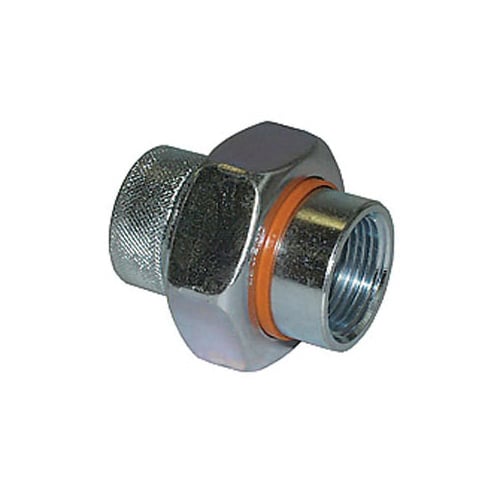

LEGEND 301-304 T-572 Dielectric Union, 3/4 in Nominal, FNPT End Style, Carbon Steel, Import


Description

LEGEND Dielectric Union, Series: T-572, 3/4 in Nominal, FNPT, 1.88 in Hex, 2.22 in Length, 200 psi CWP, Carbon Steel, Galvanized, 180 deg F, Import

Specifications

Domestic/Import Import
End Style FNPT
Finish Galvanized
Hex Size 1.88 in
Length 2.22 in
Material Carbon Steel
Nominal Size 3/4 in
Pressure Rating 200 psi CWP
Series T-572
Temperature Rating 180 deg F

Country of Origin: Taiwan

Standards and Approvals: AISI 1008A, ANSI/ASTM B16.39/B1.20.1

Features

  • High-strength, galvanized forged steel construction make them ideal for residential and commercial applications
  • Designed to reduce stray current and galvanic corrosion in steel piping systems
  • Self-aligning, non-conductive elastomer gasket and thermoplastic insert create a positive seal and complete isolation between the piping ends
  • 60 psi up to 275 deg F
  • Tensile strength, dimensional and galvanized coating requirements conform to ANSI/ASME B16.39
  • Threaded pipe end connections conform to ANSI/ASME B1.20.1
  • Manufactured in an ISO accredited facility
  • AISI 1008A galvanized forged carbon steel body
  • Commercial grade EPDM rubber gasket
  • Commercial grade ABS resin insert insulator
