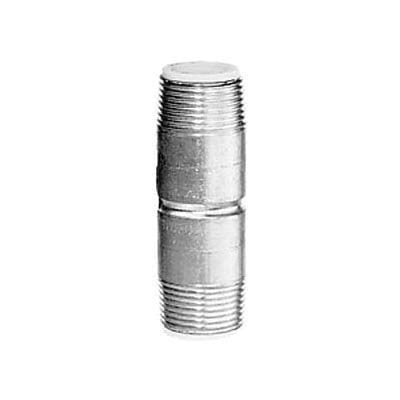

LEGEND LEGEND 301-502 T-575 Dielectric Nipple, 1/2 in Nominal, MNPT End Style, 3 in L, Steel, Galvanized, SCH 40/STD, Import


Description

LEGEND Dielectric Nipple, Series: T-575, 1/2 in Nominal, MNPT, 3 in Length, SCH 40/STD, 425 psi, 225 deg F, Steel, Galvanized, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

Specifications

Domestic/Import Import
End Style MNPT
Finish Galvanized
Length 3 in
Material Steel
Nominal Size 1/2 in
Pressure Rating 425 psi
Schedule Rating SCH 40/STD
Series T-575
Temperature Rating 225 deg F

Warranty: 5/25 Years

Country of Origin: China

Standards and Approvals: ANSI/ASME B1.20.1, ASTM F1545 - 2009, ISO Certified

Application:
For Domestic or Commercial Hot or Cold Water Systems or Hydronic Heating Applications

Features

  • Plastic lined nipple is ideal for connecting two dissimilar pipe and fitting materials, such as red brass or bronze, with black and galvanized steel or malleable iron
  • Designed to reduce galvanic and stray current corrosion by isolating the dissimilar connection from the media flow
  • Durable, welded schedule 40 nipple and PEX plastic liner are permanently bonded together
  • Pex liner's edge extends onto the front edge of the nipple's ends, assuring complete isolation from the water at the connection
  • Carbon steel body material, cross linked polyethylene (PEX) plastic insert material
  • Naturally lead free
  • Not recommended for connection with stainless steel fittings or pipe
  • Suitable for low pressure steam applications only, not exceeding 10 psi
