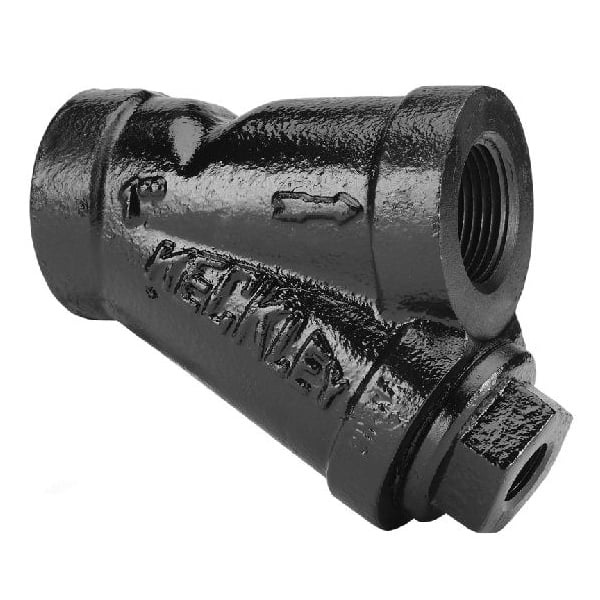

Keckley 21/23THY-CI062P34-FTI-B7 Style B7I Wye Strainer With 1/16 in Perforated 304 Stainless Steel Screen and Threaded Cover Connection, 2-1/2 in Nominal, 9-1/4 in OAL, FNPT Connection, Fiber Softgoods, Import


Description

Keckley Wye Strainer, Series: Style B7I, 2-1/2 in Nominal, 9-1/4 in Overall Length, FNPT, 1-1/2 in Blow-Off Size, Fiber, Cast Iron Body, Class B Grade, Import

Pipeline y-strainers and wye strainers offer a compact and economical means of straining debris from pipelines. Keckley Y-strainers are furnished standard with drain connections and pipe plugs. Most commonly, Y-strainers are fitted in the field with nipples and drain valves to permit the strainer screen to be cleaned while the system is still in process. By opening the drain valve while the system is under pressure, the debris trapped in the screen is "blown" through this connection helping to reduce system shut-downs for maintenance and cleaning.

Specifications

Blow-Off Size 1-1/2 in
Body Material Cast Iron
Connection Type FNPT
Domestic/Import Import
Grade Class B
Nominal Size 2-1/2 in
Overall Length 9-1/4 in
Series Style B7I
Softgoods Material Fiber

Warranty: 1 Year

Country of Origin: China

Standards and Approvals: ASTM A-126 Class B Body

Application:
Steam, water, oil or gas where protection from foreign matter in a pipeline is required

Features

  • The Keckley style B7 strainers are constructed from rugged cast iron castings that are machined to exacting specification
  • The Keckley style B7 strainer feature a straight thread bushing in size 1/4 in thru 3 in
  • All Keckley style B7 strainer are furnished standard with a NPT blow-off connection and can be supplied with a cast iron blow-off plug upon request
  • Self-cleaning is accomplished by opening the valves or drain plug connected to the blow-off port
  • Fiber gasket
