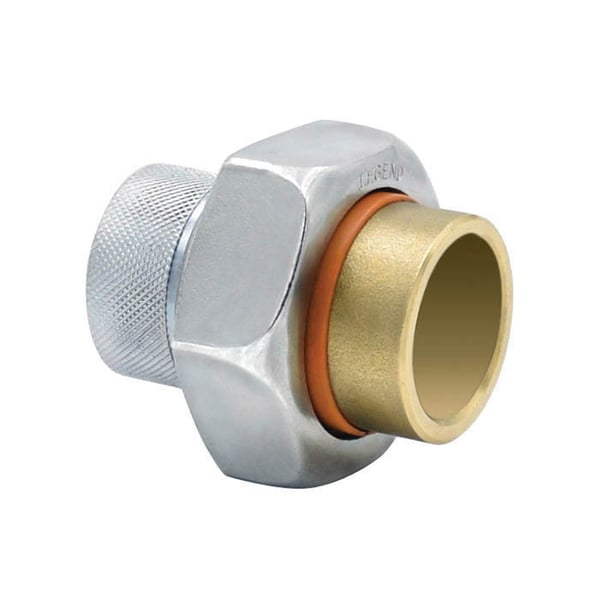

LEGEND 301-103NL T-571NL Dielectric Union, 1/2 in Nominal, FNPT x Solder End Style, Forged Carbon Steel, Import


Description

LEGEND Dielectric Union, Lead Free, Series: T-571NL, 1/2 in Nominal, FNPT x Solder, 1.84 in Length, 200 psi, Forged Carbon Steel, Galvanized, 180 deg F, 1.44 in W, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

Specifications

Dimensions 1.44 in W
Domestic/Import Import
End Style FNPT x Solder
Finish Galvanized
Length 1.84 in
Material Forged Carbon Steel
Nominal Size 1/2 in
Pressure Rating 200 psi
Series T-571NL
Temperature Rating 180 deg F

Warranty: 5/25 Years

Country of Origin: Taiwan

Standards and Approvals: ANSI/ASME B1.20.1/B16.39/B16.18, NSF 372, U.S. Federal Public Law 111-380

Application:
For Potable Water Applications

Features

  • All fittings are UL listed and FM approved for fire suppression
  • Manufactured using the latest technologies for material consistency and dimensional tolerances
  • Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined
  • Classified as a Class 150 malleable iron fitting, (rated at 150 psi) they are test pressure rated by UL and factory Mutual at 300 and 500 psi, configuration-specific
  • Forged carbon steel, galvanized body, forged carbon steel, galvanized union nut lead free forged brass solder adapters, EPDM rubber gasket, ABS resin insert insulator
