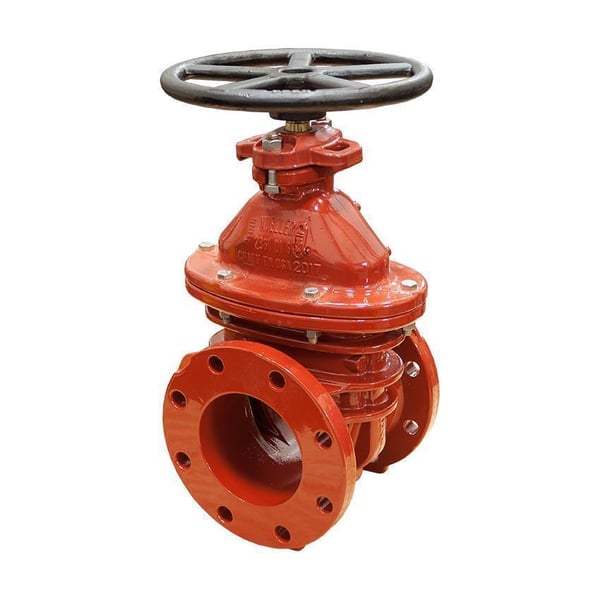

Mueller Co Mueller Co 080A236106LH 9306 Resilient Wedge Gate Valve, 8 in Nominal, Flange x Flange End Style, Ductile Iron Body, Wrench Actuator


Description

Mueller Co, 080A236106LH 9306, Gate Valve, Resilient Wedge, 8 in Nominal, Flange x Flange End Style, 350 psi Pressure, 33 to 170 deg F, Wrench Actuator, 11.5 in Inlet to Outlet Length, Ductile Iron Body, Stainless Steel Trim, EPDM Softgoods, 2 in Diameter Hand Wheel, Epoxy Coated

Specifications

Actuator Type Wrench
Body Material Ductile Iron
End Style Flange x Flange
Finish Epoxy Coated
Hand Wheel Diameter 2 in
Inlet to Outlet Length 11.5 in
Nominal Size 8 in
Pressure Rating 350 psi
Softgoods Material EPDM
Temperature Rating 33 to 170 deg F
Trim Material Stainless Steel
Type Resilient Wedge

Standards and Approvals: ANSI Specified/AWWA Compliant/UL Listed/FM Approved/NSF Approved/ASME Specified

Application:
Portable Water
