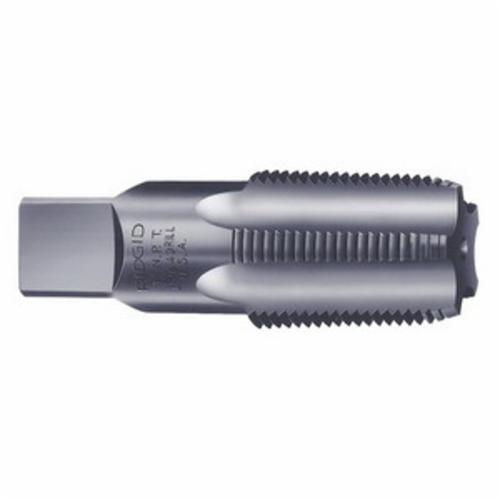

RIDGID® 35815 Pipe Tap, 1/8-27 Thread


Description

RIDGID® Pipe Tap, Measurement System: Imperial, 1/8-27 Thread, NPT Thread Standard, Tapered Chamfer, 3/4 in Thread Length, 2-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.288 in Shank Diameter, 21/64 in Tap Drill, High Carbon Steel, Oxide

Specifications

Chamfer Type Tapered
Cutting Direction Right Hand
Finish/Coating Oxide
Material High Carbon Steel
Measurement System Imperial
Number of Flutes 4
Overall Length 2-1/8 in
Shank Diameter 0.288 in
Tap Drill Size 21/64 in
Thread Length 3/4 in
Thread Size 1/8-27
Thread Standard NPT

Country of Origin: United States

Standards and Approvals: ANSI Specified, ASME B1.20-1983

Features

  • These taps are especially suited for restricted area work
  • All taps have taper of 3/4 in-ft
  • Marked with drill size for pilot hole
